GM-3060中空玻璃封膠線
您當前位置:首頁 > 產品展示 > 中空玻璃生產線
GM-3060中空玻璃封膠線
Product summary An Chuan servo bus control system is adopted, with mature technology and stable and reliable operation. The gluing machine operates independently in four sections. When the glass length is more than 2 meters, it is linked as a whole. When the glass length is less than 2 meters, each section operates independently, which greatly improves the gluing speed. Electronic proportioning system is adopted to control the mixing ratio, which is convenient to adjust and accurate in proportioning. It is especially suitable for gluing curtain wall glass, and the amount of glue can be automatically adjusted according to the gluing width and depth, which can meet the requirements of aluminum strip width from 6A to 27A for efficient gluing. The input and output are transported by full servo motor, which has large bearing capacity and high transmission efficiency. The glued glass is output by V-belt transmission system, which can automatically center according to the glass thickness to prevent sticking. This machine can glue three glasses and two cavities at one time, and the gluing is clean and fast. Applicable glue types: two-component polysulfide glue or silicone sealing and silicone structural glue. Adopt motion controller and touch screen operating system, with simple operation and stable operation. Automatic thickness measuring system, which can automatically adjust the gluing data after automatically measuring the thickness of aluminum strip, is a truly humanized function, and it has been impossible to realize automation to solve the problem of loose sheets and miscellaneous sheets.
13690317891
產品詳情

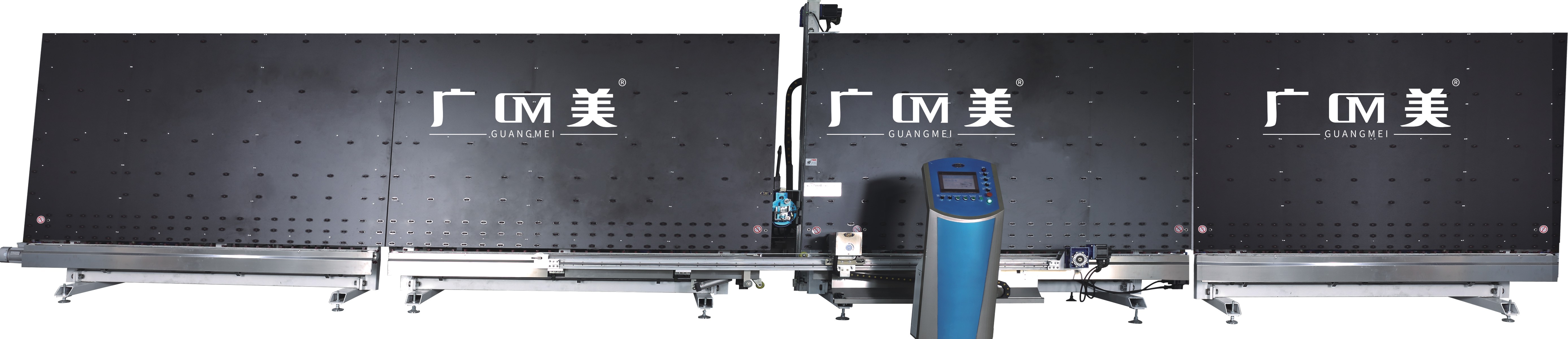

全自動中空玻璃封膠線
一. MODEL:全自動中空玻璃封膠線 型號 GM-FJX2540 型二. GENERAL ARRANGEMENT 標準配置
(示意圖僅供參考,不作為驗收依據)
產品概要
? 采用日本安川伺服總線控制系統,技術成熟,運行穩定可靠。
? 打膠機采用四段式獨立運行,當玻璃長度大于 2 米時整體聯動,當玻璃長度小于 2 米時每段獨立運行,大大提高打膠速度。
? 采用電子配比系統控制混膠比,調整方便,配比精確,特別適合幕墻玻璃打膠,膠量根據涂膠寬度和涂膠深度自動調整,可滿足 6A 至 27A 的鋁條寬高效打膠。
? 輸入及輸出采用全伺服電機輸送,承載力大,傳輸效率高,涂膠后的玻璃采用 V 型帶傳輸系統輸出,能根據玻璃厚度自動對中,防止粘膠。
? 本機可實現三玻兩腔玻璃一次打膠完成,涂膠干凈快速。
? 適用膠種:雙組份聚硫膠或者硅酮密封和硅酮結構膠。
? 采用 運動控制器, 觸摸屏操作系統,操作簡單,運行穩定。
? 自動測厚系統,自動測量鋁條厚度后自動調節打膠的數據,真正的人性化功能,解決散單雜單一直無法實現自動化生產的難題。
? 自動修角裝置,在打膠的同時自動對四個角部進行抹膠修正,打膠完成就直接是成品,角位美觀實用。
標準配置由以下幾部分組成:
1. 傳輸段 X 4(V 帶特別設計,防磨損)
2. 吸盤(費斯托)
3. 控制臺(人機智能控制系統)
4. 打膠控制系統(日本安川)
5. 打膠機頭(多項專利,行業突破性設計)
壓盤供膠系統(單雙可供選
機械外形尺寸 | 13000mmx1600mmx3500mm |
可加工最大玻璃規格 | 3000mm x 6000mm |
可加工最小玻璃規格 | 300mm x 350mm |
涂膠厚度 | 6mm –30mm |
中空玻璃成品厚度 | 12mm – 60mm |
單片玻璃厚度 | 3-15mm |
打膠速度 | 4-40 米/分鐘(6A 隔條、5mm 膠深規格條) |
傳送速度 | 4 – 40m/min |
負載重量 | 3000kg/m |
打膠環境溫度 | 15-40℃ |
控制方式 | 觸摸屏 |
氣源 | 氣源壓力 6Bar,最大耗氣量 2.0Ms/min |
電壓功率 | 12kw , 380V (50HZ) |
外接線入口 |
10 ㎡電線 63A 斷路器(5 線) |
